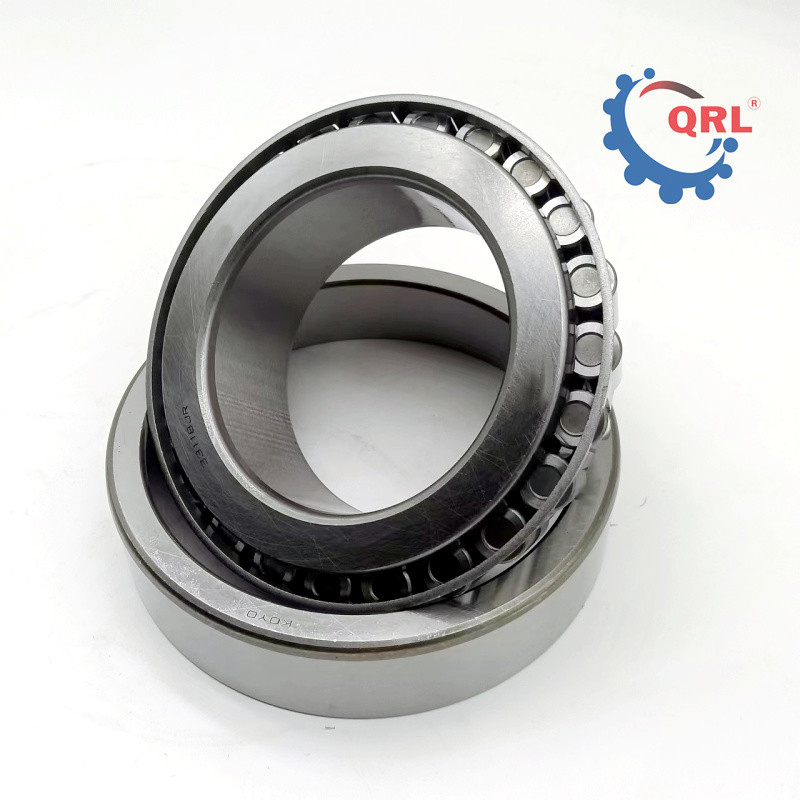

33118 33118 JR 33118/Q QRL Tapered Roller Bearing 90x150x45mm

Name: 33118 33118 JR 33118Q QRL Tapered Roller Bearing 90x150x45mm
Brand: OEM-QRL
Price: 1 USD

China 33118 33118 JR 33118/Q QRL Tapered Roller Bearing 90x150x45mm factory

Brand Name : OEM-QRL

Model Number : 33118 33118 JR

Certification : ISO2000/9002

Place of Origin : CHINA

MOQ : 20

Price : Negotiable

Payment Terms : L/C, D/A, D/P

Supply Ability : 8500 PCS

Delivery Time : time by quantity

Packaging Details : Carton/woven bag

Type : Taper Roller Bearing

Size : 90x150x45mm

Dimensions : 33118 33118 JR

Service : OEM Customized Services

Weight : 2.75 kg

Application : Engineering Machinery

Number of row : Single Row

Contact Now

33118 33118 JR 33118/Q QRL Tapered Roller Bearing 90x150x45mm

Tapered Roller Bearing Specification

Weight [kg]	3.11
Inner diameter [mm]	90
Outer diameter [mm]	150
Width [mm]	45
Category	Tapered roller bearings
Seal	None
Radial Clearance	Normal
Bore	Cylindrical
Special	Nothing
Customs tariff no.	84822000

Taper Roller Bearing Description

Tapered roller bearings are separable into a cone assembly and a cup. The non-separable cone assembly consists of the inner ring, the rollers, and a cage that retains and evenly spaces the rollers. The cup is simply the outer ring.

Tapered Roller Bearing Product number

32019X	95	145	32	24	32	280.1	173	2300	3100	1.89
33019	95	145	39	46	39	350	211.6	2300	3100	2.315
32219	95	170	43	37	45.5	390	281	1900	2800	4.05
31319(30319D)	95	200	45	32	49.5	355	298.3	1700	2200	6.95
32020L	100	150	29	25	32	251.5	163.8	2200	3000	1.81
33020	100	150	39	32.5	39	375	230	2200	3200	2.4
32220	100	180	46	39	49	465	331	2000	2700	4.92
32220J2	100	180	63	48	63	660	430	2,650	3,900	6.77
33021	105	160	43	34	43	430	246	1900	2800	3.05
3022X/105	105	170	38	29	38	388	236	2000	2700	3.32

Taper Roller Bearings Applications

Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing application can be achieved.
