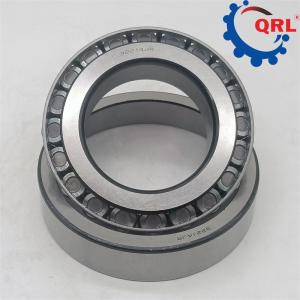

32214 J2/Q 32214 JR HR 32214 J Tapered Roller Bearings 70x125x33.25 mm

  • 1
  • 2

Brand Name : OEM-QRL

Model Number : 32214

Certification : ISO2000/9002

Place of Origin : CHINA

Price : Negotiable

Payment Terms : L/C, D/A, D/P

Supply Ability : 10000 PCS

Delivery Time : time by quantity

Packaging Details : Carton/woven bag

Type : Tapered Roller Bearing

Inch : 70x125x33.25 mm

Number of row : HR 32214 J

Roller Bearing Type : Auto bearings

Weight : 1.56KG

Application : Machinery

Stock : 20000pcs

Contact Now

32214 J2/Q 32214 JR HR 32214 J Tapered Roller Bearings 70x125x33.25 mm

Tapered Roller Bearing Specification

Bore diameter (mm) Out diameter (mm) Weight (Kg)
70.00 125.00 1.56
Taper Roller Bearing Description

A tapered roller bearing is a unit that consists of both tapered raceways (inner and outer rings), and tapered rollers. The construction is intended for combination loads, such as dual acting axial and radial loads.

Tapered Roller Bearing Product number

Part No. BOUNDARY DIMENSIONS (in m.m.) LOAD RATING LIMITING SPEED (R.P.M.) MASS
d D B C T STATIC (Co) KN DYNAMIC (C) KN Grease Oil (~ Kg.)
33111 55 95 30 23 30 155.1 110.7 3800 5000 0.897
30211 55 100 21 18 22.75 90.2 79.9 3600 4900 0.675
32211 55 100 25 21 26.75 133.9 108 3800 5000 0.83
32211J2/Q 55 100 25 21 26.75 135 109 4,050 6,700 0.87
33211 55 100 35 27 35 190 138 3300 4300 1.2
32310/55 55 110 40 33 42.25 212 172 3200 4300 1.7
31311 (30311D) 55 120 29 21 31.5 144.2 126.6 2900 3800 1.55
30311 55 120 29 25 31.75 179 155 3200 4300 1.66
33012 60 95 27 21 27 145.4 93.5 3700 4900 0.68
30312 60 110 22 19 23.75 124.9 105 3400 4500 0.95
32212 60 110 28 24 29.75 160.5 127.5 3400 4500 1.18
X32212 60 110 28 24 29.75 159.9 110.4 3400 4500 1.186
31312F 60 130 31 22 33.5 178.4 153.2 2600 3600 1.9
30312 60 130 31 26 33.5 209.8 180.1 3000 4000 2.03
31312L 60 135 31 22 33.5 178.4 153.2 2600 3600 2.12


Correct method of bearing installation

When press-fitting a bearing using a manual press or the like, it is first necessary to calculate the pressing-in force based on the interference between the shaft and the inner ring (a hydraulic press with an operating pressure greater than the required pressure must be used). Then, when pressing in the inner ring, use the inner ring pressing tool to firmly press it into the shaft shoulder (do not apply force to the outer ring). After pressing in, measure the accuracy of each part of the bearing to confirm whether it is indeed installed on the shaft. In addition, when using multi-row bearings in combination, the runout should be measured after assembly to correct the axis deviation between the outer rings.
