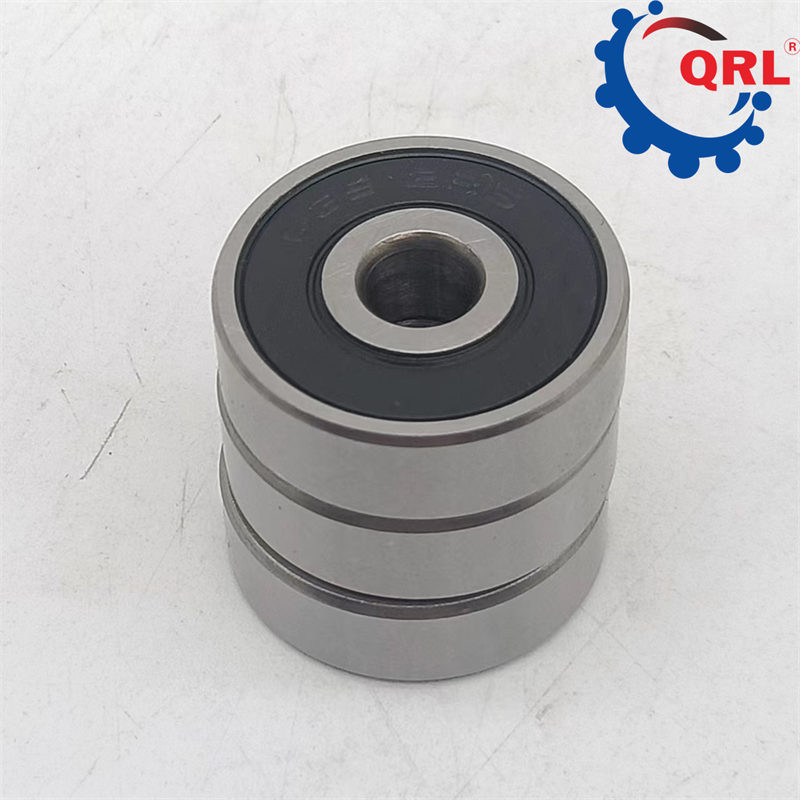

635 2RS Miniature Deep Groove Bearings 5x19x6mm
Deep Groove Ball Bearing Specification
| Manufacturer Product Code | 635 |
| Basic Product Description | Single Row Deep Groove Ball Bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 5 |
| od (mm) | 19 |
| Width (mm) | 6 |
| Weight (Kg) | 0.008 |
| Seals | Open (No seal) |
| Clearance | Normal Clearance (Cn) |
| Cage design | Stamped steel |
| Cage material | Steel cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 2.34 |
Deep Groove Ball Bearing Description
Deep groove ball bearings are one of the most common style of ball bearings which support axial forces in both directions as well as radial forces. The bearing has a single row of balls retained in a cage and is sealed for life with an NBR seal on both sides of the bearing, the bearing is pre-greased which means you do not need to lubricate the bearing.
Deep Groove Ball Bearing Product number
| Model | d | D | H | Cr | Cor | grease | oil | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) |
| 6300 | 10 | 35 | 11 | 7.65 | 3.48 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 9.72 | 5.08 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 11.5 | 5.42 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 13.5 | 6.58 | 15000 | 18000 | 0.115 |
| 6304 | 20 | 52 | 15 | 15.8 | 7.88 | 13000 | 16000 | 0.142 |
| 6305 | 25 | 62 | 17 | 20.6 | 11.3 | 11000 | 13000 | 0.232 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 6600 | 12000 | 0.346 |
| 6307 | 35 | 80 | 21 | 33.4 | 19.3 | 8500 | 10000 | 0.457 |
| 6308 | 40 | 90 | 23 | 40.8 | 24 | 7000 | 8500 | 0.639 |
| 6309 | 45 | 100 | 25 | 52.8 | 31.8 | 6300 | 7500 | 0.837 |
Deep Groove Ball Bearing Applications
1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.
2. Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.
3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.
4. The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.
5. Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.
6. Car: truck, road, bus, car, modified car, motorcycle ,etc.
