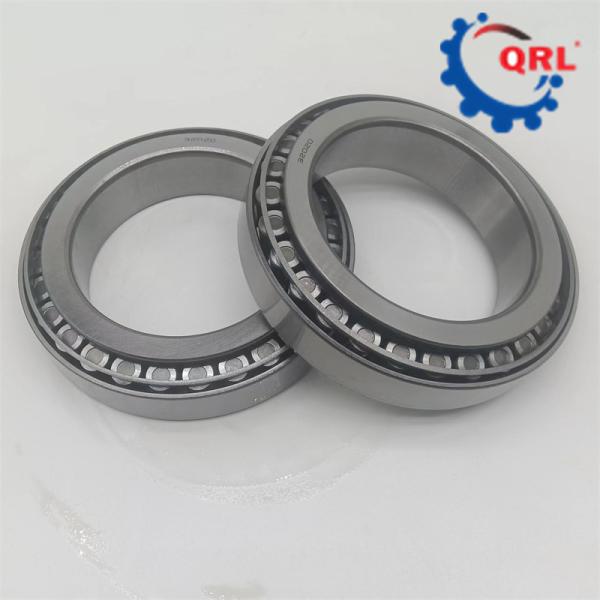

High Speed Silent Tapered Roller Bearing 32020 X 100x150x32 Mm

Brand Name : QRL

Model Number : 32020 X

Certification : ISO9001:2008

Place of Origin : CHINA

MOQ : 12

Price : Negotiable

Payment Terms : L/C, D/A, D/P,

Supply Ability : 4000 PCS

Delivery Time : 10-15 Working

Packaging Details : Carton/woven bag

Type : Tapered Roller Bearing

Number : 32020 X

Size : 100x150x32 mm

Weight : 2.7 kg/pcs

Brand : Oem/Neutral

Sample : 7 working days

Car make : for Mercedes Ben

Contact Now

High speed silent Tapered Roller Bearing 32020 X 100x150x32 mm

Tapered Roller Bearing Specification

Raceway Ring Shape	Tapered Roller	Load Direction	Radial / Thrust
I.D. d(Ø)	100	O.D. D(Ø)	150
Width B(mm)	32	Inner/Outer Ring Material	Steel
Precision (JIS)	-	Number of Raceway Ring Rows	Single Row
Size Standards	Metric System	Specifications/Environment	Standard
Rolling Element Material	Steel	Outer Ring Type	Flat
Show More

Tapered Roller Pro duct number

33019	95	145	39	46	39	350	211.6	2300	3100	2.315
32219	95	170	43	37	45.5	390	281	1900	2800	4.05
31319(30319D)	95	200	45	32	49.5	355	298.3	1700	2200	6.95
32020L	100	150	29	25	32	251.5	163.8	2200	3000	1.81
33020	100	150	39	32.5	39	375	230	2200	3200	2.4
32220	100	180	46	39	49	465	331	2000	2700	4.92
32220J2	100	180	63	48	63	660	430	2,650	3,900	6.77
33021	105	160	43	34	43	430	246	1900	2800	3.05
3022X/105 (SKF=3311260 Q FERSA=F 15076)	105	170	38	29	38	388	236	2000	2700	3.32
31322XJ2	110	240	57	38	63	590	465	2,240	2,800	12.3
32022X	110	170	38	29	38	388	236	200	2700	3.07
33022	110	170	47	37	47	500	281	1800	2600	3.85
32222	110	200	53	46	56	605.8	419.1	1800	2400	7.14
32322	110	240	80	65	84.5	1020	740	2,050	2,800	19
32024-X	120	180	38	29	38	420	250	2,460	3,650	3.29
31324XJ2	120	260	62	42	68	700	540	2,010	2,500	15.4

Tapered Roller Bearing Delivery

The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring.
