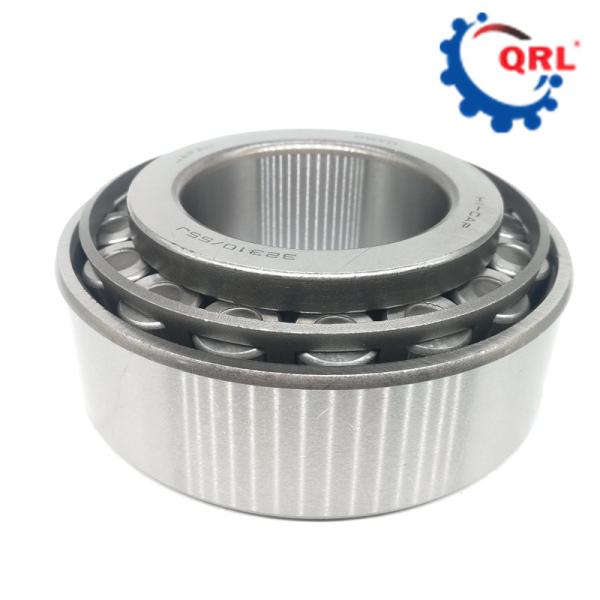

Carbon Steel Tapered Roller Bearing 32310/55 Size 55x110x42.25mm

  • 1
  • 2

Brand Name : QRL/OEM

Model Number : 32310/55

Certification : ISO2000/9001

Place of Origin : CHINA

MOQ : 50

Price : Negotiable

Payment Terms : L/C, D/A, D/P

Supply Ability : 10000

Delivery Time : 7-16 Working

Packaging Details : Carton/woven bag

Type : Taper Roller Bearing

Roller Bearing Type : inch bearing

Number of row : 32310/55JR-9

Cage Material : 1.7960x3.2650x0.9375 inch

Weight : 0.461 kg/

Inch : Size (mm) : 55x110x42.25

Material : Carbon Steel

Contact Now

Tapered roller bearings 32310/55 Bearing number : Size (mm) : 55x110x42.25.

Tapered Roller Bearing Specification

Specifications

Brand: QRL

Title Description
Bore diameter (mm) 55
Out diameter (mm) 110
T Size (mm) 42.25
Weight (Kg) 1.63

Inch Taper Roller Bearing Description

Taper roller bearings are designed to take both heavy radial and thrust loads. Cylindrical rollers, with a length that is slightly larger than the diameter, and tapered inner and outer races, which are part of a cone, allow these bearings to handle larger loads than spherical ball bearings.

Our metric taper roller bearings are measured in metric sizes to ensure that you are able to find the correct bearing for your application needs. Bore diameters range from 15.000 mm to 120 mm, with outer

Product number

Part No. BOUNDARY DIMENSIONS (in m.m.) LOAD RATING LIMITING SPEED (R.P.M.) MASS
d D B C T STATIC (Co) KN DYNAMIC (C) KN Grease Oil (~ Kg.)
31593/31520 34.925 76.2 28.575 23.812 29.37 97.5 80.5 5000 6700 0.628
31594/31520 34.925 76.2 28.575 23.812 29.37 97.5 80.5 5000 6700 0.628
46143/46368 36.512 93.662 31.75 26.195 31.75 131 103.5 4100 5400 1.35
3490/3420 38.1 79.375 29.771 23.812 29.37 114.3 92.9 4900 6600 0.67
HM 801346 / HM 801310 38.1 82.55 28.575 23.02 29.37 115.5 88.5 4700 6200 0.755
25572/25520 38.1 82.931 25.4 19.05 23.813 98.2 76.5 4500 6000 0.64
418/414 38.1 88.5 29.083 22.225 26.988 116 101 4800 6300 0.835
2789/2729 39.688 76.2 25.654 19.05 23.775 91.2 73.2 5100 6800 0.47
344/332 40 80 22.403 17.826 21 75.1 68.3 4700 6300 0.47
LM 501349/LM 501310 41.275 73.431 19.812 14.732 19.558 55.5 69.5 5000 6600 0.34
24780/24720 41.275 76.2 23.02 17.462 22.225 86.9 68.4 4900 6500 0.43
3585/3525 41.275 87.312 30.866 23.812 30.162 117.1 94 4400 5900 0.78
4388/4335 41.275 90.488 40.386 33.338 39.688 174.9 136.1 4300 5800 1.265
HM 903245 / HM 903210 41.275 95.25 28.575 22.225 30.958 122 101 3600 4800 1.05
4395/4335 42.07 90.488 40.386 33.338 39.688 186.5 142.9 4300 5800 1.245
25577/25523 42.875 82.931 25.4 22.225 26.988 111.1 83.9 4500 6000 0.61
HM 803149 / HM 803110 44.45 88.9 29.37 23.02 30.162 125 93.5 4300 5800 0.84


Taper Roller Bearings Applications

  • 1 These maximum fillet radii will be cleared by the bearing corners.
  • 2 These maximum fillet radii will be cleared by the bearing corners.
  • 3 Negative value indicates effective center inside cone backface.
  • 4 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
  • 5 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
  • 6 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 7 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 9 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 10 Geometry constant for Lubrication Life Adjustment Factor a3l.


Carbon Steel Tapered Roller Bearing 32310/55 Size 55x110x42.25mmCarbon Steel Tapered Roller Bearing 32310/55 Size 55x110x42.25mm
